Executive Summary
Engineers repurposed the ultra-thin proboscis of a deceased female mosquito as a high-resolution 3D-printing nozzle — extruding lines as fine as ~20 μm, about half the thickness of a fine human hair, at a cost of just ~$0.80 per tip versus ~$80 for glass equivalents. Printed structures included a honeycomb, a maple leaf, and bioscaffolds encapsulating live red blood cells.
Min line width
Cost per nozzle
Cell viability
Cheaper than glass
Bio-Inspired Micro-Nozzles
High-resolution 3D printing relies on ultrafine nozzles for micron-scale precision. Conventional metal or glass microdispense tips (34–36 gauge) achieve ~40–50 μm line widths — but cost ≈$80 per tip and are fragile. Biologist-engineers turned to nature: insect proboscides and plant xylem are naturally evolved microfluidic channels.
The mosquito's proboscis is a needle-like bundle of six stylets housed in a labium sheath, enabling females to pierce skin with minimal pain. Its inner lumen (~20–25 μm diameter) is smaller than any standard dispenser — making it an ideal candidate for ultrafine printing.
3D Necroprinting Technique
Figure: A mosquito proboscis bonded to a syringe/tip assembly and driven by a piston extruder, enabling extrusion of bioink through the natural mosquito nozzle.
Deceased female Aedes aegypti mosquitoes are dissected under a microscope to isolate the ~2 mm long proboscis. The tip is trimmed to create a clean orifice, then glued onto a standard plastic 30-gauge dispense tip with UV-curable resin.

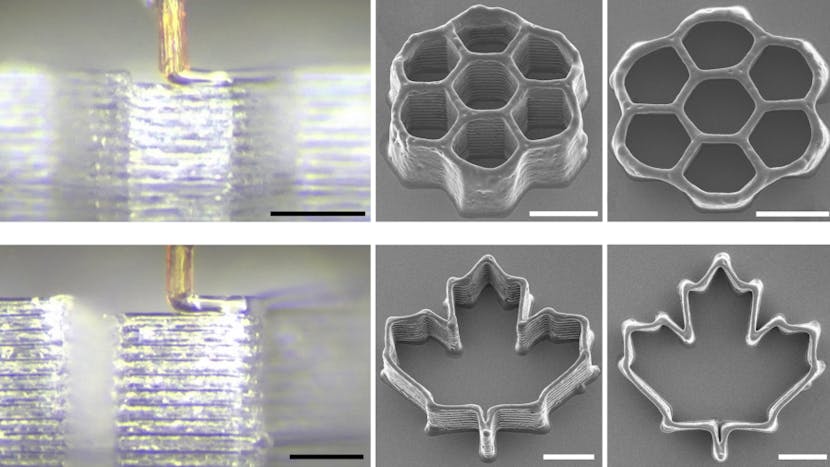

The proboscis tolerates internal pressures up to ~60 kPa. Researchers synchronized ink extrusion speed with nozzle motion to achieve continuous filaments of ~20 μm without clogging. Demonstrations included a microscopic honeycomb (~22 μm filaments), a maple-leaf outline (~18 μm lines), and 3D cell scaffolds at ~86% post-print cell viability.
Comparison
Swipe to scroll →
| Capability | Mosquito Nozzle | Conventional |
|---|---|---|
| Min line width | ~18–22 μm | ~35–50 μm |
| Inner diameter | ~20–25 μm | ~35–50 μm |
| Cost per nozzle | ~$0.80 | ≈$80 |
| Print speed | Very slow | Higher throughput |
| Durability | ~14 days | Often single-use |
| Environment | Biodegradable | Non-biodegradable |
| Best for | Cell printing, scaffolds | Microfluidics, electronics |
Potential & Applications
Applications include high-fidelity tumor and organoid models for drug testing, microscopic electronics manufacturing, and minimally invasive drug delivery. Biodegradable and low-cost tips could significantly reduce lab waste.
Key Uncertainties & Next Steps
- Scaling — Standardized harvesting protocols still needed for mass production.
- Lifespan — Tips last ~14 days; ceramic coatings or synthetic analogs needed.
- Speed — Very slow currently; throughput optimization is a key challenge.
- Safety — Sterilization, allergens, and cleanroom compatibility must be verified.
- Commercialization — No patents or startups public yet.
- Validation — Independent benchmarking against existing technologies still needed.
